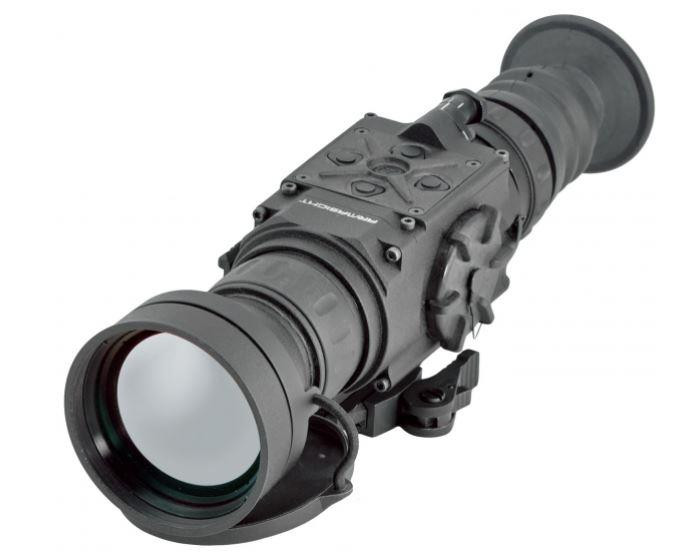

Armasight Zeus 3-24x75 (30hz) Thermal Imaging Riflesight

The Armasight Zeus 3 Thermal Imaging Riflescope is the perfect combination of ergonomic features in a handheld scope with weapon mounting capabilities. Based on the proven microbolometer core, the this Tactical Riflescope from Armasight is an ideal product for force protection, border patrol officers, police SWAT officers and special operations forces, providing users with the necessary tools to be successful in both daytime and nighttime field conditions. The uncooled thermal imaging of the Armasight Zeus 3 Tactical Thermal Scope cuts through dust, smoke, fog, haze, and other battlefield obscurants. Use of this Armasight Thermal Imaging Riflescope cannot be detected, as it emits no visible light or RF energy and operates without the use of illuminators or IR lights. For a great way to make sure that you have the tactical advantage, choose the Armasight Zeus III Thermal Imaging Rifle Scope.

Specifications:

• Magnification (NTSC/PAL): 2.7x / 3.2x
• Objective Lens Type: Germanium
• Type of Focal Plane Array: FLIR Tau 2
• Pixel Array Format: 640x512
• Pixel Size: 17um
• Display Type: AMOLED SVGA 060
• Pixel Display Format: 800"~600
• Display Brightness: Discretely Adjustable to 8 Levels
• Turn-on Time, max: 3 sec
• Digital Zoom: 1x, 2x, 4x, and 8x
• Temperature Imaging Modes (Image Palettes): White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom
• Reticle Type 6-Pattern Digitally Controlled: "Dot 4 MOA", "Line Dot", "Cross Center Dot", "Cross", "Crosshair", or "No Reticle"
• Reticle Color: Black, White, Red, Cyan
• Windage/Elevation Boresight Adjustment Type: Digitally Controlled
• Windage/Elevation Boresight Increment: NTSC-0.76 MOA
• Windage/Elevation Boresight Increment: PAL-0.63 MOA
• Windage Adjustment Range: (NTSC/ PAL) "}61MOA /"}50MOA
• Elevation Adjustment Range: (NTSC/ PAL) "}46MOA /"}38MOAOutput Resolution
• Weapon Mount Type: Picatinny MIL STD 1913 and Weaver Rails
• Dimensions: 10.8""~2.8""~3.2"
• Overall Dimensions: 214"~68"~78 mm (8.4"h"~2.7"h"~3.1"g)
• Height of the Zeus Axis above Rail: 40 mm (1.57 in)
• Weight (w/o Batteries): 1.8 lbs
• Field of View ang. X degrees: 7.8
• Field of View ang. Y Degrees: 5.9
• Objective Focal Length: 75mm
• Objective F-Number: 1
• Eyepiece Focal Length: 25 mm
• Entrance Pupil Diameter: 42mm
• Exit Pupil Diameter: 10 mm
• Eye Relief: 45 mm
• Focus Method: Manual
• Focusing Range: 10m to inf.
• Diopter Adjustment: Manual
• Diopter Adjustment Range: "}5 diopter
• Battery Two: CR 123A (2"~3V)
• Current Consumption, maximum: 350 mA
• Battery Life at 20 "â¹C (68 "â¹F): 4 hr
• External Power Supply: 6 VDC/ 600mâb@
• Operating Temperature: -40 to +50 "â¹C (-40 to +122 "â¹F)
• Storage Temperature: -50 to +70 "â¹C (-58 to +158 "â¹F)
• Recoil Resistance: 700g
• Height of the Scope Axis: 42 mm (1.65 in)

Features:

• Optical Magnification 2.8x/3.4x
• High-performance thermal imaging camera
• Lightweight and robust design
• Easy to operate
• Manually adjustable eyepiece and objective lens
• Real-time display
• Adjustable display brightness
• Selectable 6-pattern reticle including no reticle option
• Switchable reticle color
• Selectable image palette
• Field environment corrections
• Zoom
• Windage/Elevation boresighting
• Displaying information on the current operating state (battery status, active function etc.)
• Wireless remote control
• Analog video input and output (NTSC/PAL)
• Powered by two standard CR123A batteries.
• Power input capability
• Digital video recorder (optional)
• Fits any Picatinny MIL STD 1913 and Weaver rail with an adjustable quick-release mount
• Serviceability under severe conditions
• Filled with dry nitrogen to prevent internal fogging
• Waterproof
• Warranty is 3 years on unit and 10 years on sensor

Includes:

• Armasight Zeus 3 Thermal Imaging Riflescope
• Objective Lens Cap
• Eyecup
• Mount
• R123A Lithium Battery
• Advanced Wireless Remote Control (AWREC)
• Picatinny Adapter for Advanced Wireless Remote Control
• Operation and Maintenance Manual
• Hard Shipping/Storage Case
• Battery Cassette
• Video Cable
